Cigar Lake Mine Investigation

Toronto-based Cameco Corporation is the world’s largest publicly traded uranium company operating a number of mines worldwide. Their Cigar Lake mine in northern Saskatchewan was first identified as a major source of high grade uranium nearly 20 years ago and was due to start production in 2007 after undergoing construction costing in excess of $600 million.

In April 2006, a shaft intended to provide ventilation to the main mine had reached a depth of approximately 1300 ft. when the miners hit a high volume groundwater layer and a valve on a 2 in. grout line leading to this water zone failed, resulting in the flooding of the mine shaft.

Nuytco Research of North Vancouver, B.C., with extensive experience in underwater operations, was contracted by Cameco to assist in locating and plugging the broken grout line to allow the shaft to be dewatered and rehabilitated. For the first phase of the operation, Nuytco, working closely with CKL Engineering of Saskatoon project engineers, employed the use of a small ROV to initially inspect the shaft bottom where it was determined a significant amount of sand and silt now covered the open grout pipe. A program was undertaken to remove the bottom material and further inspect the bottom with a custom-built drop camera built by Nuytco. After an extensive dredging operation and bottom survey with the drop camera system, the grout line was located and it was determined there was good access that would allow a nitrogen inflatable packer tube to be inserted leading to the second phase of the operation.

For the second phase, Nuytco Research selected and contracted Michigan-based SeaView Systems, Inc. to assist with their Seaeye Falcon DR ROV to aid in the viewing and insertion of the placement of the inflatable packer.

The plugging operation was in progress with both Nuytco Research and SeaView Systems’ personnel on location in October 2006 when the main mine suffered a roof cave-in, resulting in the mine flooding at a rate of approximately 15,000 to 20,000 gal/min.

The mine had been designed to contain such an event with the installation of two 12 foot diameter high-pressure bulkhead doors located within the shaft so that when closed they would isolate the mine’s ore body area from the mill/production facility area, allowing the mine to flood while still protecting the mill/production assets. During evacuation, one door closed successfully but the other failed to seal. After several attempts and with frigid water flooding through the door and increasing in volume at an alarming rate, it became apparent that the door was not going to able to be closed in the given time. Reluctantly the miners, with water at thigh level, took the last elevator 1600 feet to the surface, losing the entire mine until the leak could be stopped and the mine dewatered and renovated.

Given the estimated $1 billion value of the mine, no time was spared by Cameco in starting on a recovery program. They decided upon a two-pronged approach towards rehabilitation. The first phase was to bring in two land-based oil drill rigs to drill down to the mine cave-in area and pump grout to form a large plug in the mine tunnel. Once the plug was set in place and proved to be sealing, the mine would be dewatered on the downstream side so that rehabilitation could then proceed.

The second phase was to contract Nuytco Research to provide a robotic option to perform a condition assessment of the mine in the region of the bulkhead door and of the door itself. To support them in this undertaking, Nuytco Research again contracted SeaView Systems, Inc. to provide their Seaeye Falcon DR ROV. Together the two companies took a ‘white paper’ development approach with the only restriction being the state-of-the-art of applicable underwater technology.

As visibility was expected to be near zero, the need for accurate navigation and the best available real-time remote imaging equipment was a critical requirement for the successful completion of the project.

Having had experience deploying guided inertial navigation systems on the ROV, SeaView recommended the ROV be positioned using a CDL Mini-positioning guided Inertial Navigation System (INS) and that Nuytco contract SeaView’s historical partner in INS operations, SeaVision Marine Ltd. of Connecticut. Other identified equipment was a DIDSON imaging multi-beam sonar, RDI Doppler Velocity Log, CDL Minipulse profiling sonar, Imagenex 881a imaging sonar, two Outland Technology P&T cameras and two 150 W DSPL halogen lamps to be deployed in addition to the standard low light Seaeye Camera.

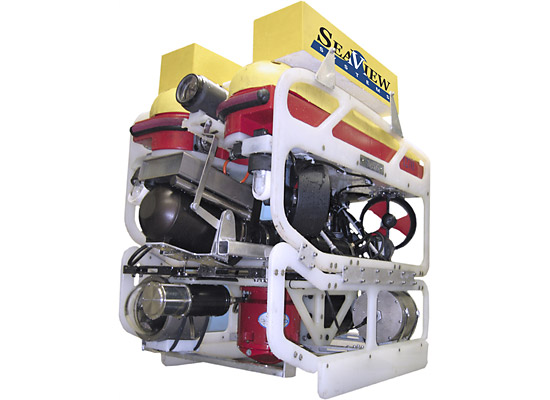

SeaView System’s Falcon DR set up with a Doppler velocity log aided Inertial Navigation System, a multibeam Didson sonar slaved to the center camera along with front and rear Pan/Tilt/zoom cameras and a profiling and imaging sonar

Due to the low visibility, it was necessary that a means of navigating the ROV be developed that would not only position the ROV in real-time, but also provide an expedient means of mapping any debris or obstructions identified to minimize the risk of entrapment. To this end, using Hypac software, Mr. Jeff Snyder of SeaVision Marine built a virtual 3-dimensional model of the mine system based on drawings provided by Cameco. Within this model, Jeff placed a model of the Falcon DR and provided the model with positioning information derived from the CDL Mini-pos. Using this information, the ROV could be flown through the virtual space much like a video game, using sonar primarily for obstacle avoidance and tunnel mapping duties. The deliverable product to the client would be an updated 3-D model of the mine showing it as it exists, complete with geo-reference features such as implements, tool boxes and other solid debris.

Over a two week period and working on a very tight project timeline, the equipment was assembled at Nuytco’s workshops in North Vancouver, B.C. and calibrated and integrated into the Falcon DR. Once all work was done, the system taken to the job was a world-class solution to the problem. Rarely has that level of equipment been deployed from an inspection class ROV at one time.

Once testing was completed, all equipment was shipped to the Cigar Lake mine where the equipment was mobilized into the main access shaft. Deployment was performed using SeaView’s aluminum deployment cage integrated into the mine’s existing elevator hoist system.

SeaView Systems Falcon DR about to ascend the flooded mineshaft


The mission was to dive the ROV in its deployment cage to 1600 feet, fly straight out 100 feet, turn right and travel a further 250 feet while recording profiling sonar data. Accomplishing this required the ROV negotiate past a Bobcat skid steer tractor, a number of cables, pipelines and other infrastructure hanging from the tunnel’s roof, and finally maneuver past a scoop loader (low profile tractor used in mines) that had been used to try to pull the bulkhead door shut immediately prior to evacuation from the flooding mine and was feared to be blocking immediate access to the bulkhead door.  Finally, the ROV was to take a video survey of the bulkhead door which, due to the poor visibility, required that the camera be positioned very close to the door and associated slings.

The Falcon DR was lowered in its cage to the mine drift 1600 feet below the surface where the INS was given the final position from where it would dead reckon throughout the investigation. Visibility at this point was on the order of two feet. Leaving the cage, it soon became apparent the 3-D virtual guidance was a great aid to the pilot and lived up to its promise in allowing the mission to be flown in virtual space as the ROV traveled in real space. The navigation and obstacle avoidance was complimented by the three sonars also carried aboard the ROV.

Inside SeaView Systems Control Container

Upon arrival at the scoop loader 15 feet before the bulkhead door, there were some anxious moments as the ROV was maneuvered blindly past the gap between the scoop loader’s cabin and the tunnel roof. Not only was there concern that if the ROV was not able to get past the scoop all the effort and development would have been in vain, but an additional concern was the ability to retrieve the ROV once past the scoop loader. Perseverance paid off and the ROV made it past the restriction to end the penetration standing directly in front of the bulkhead door. A thorough video investigation showed the dislodged sealing gasket, along with wire lifting straps still attached to the scoop loader in the vicinity of the door. After negotiating through such a complicated environment with no means of recovery in the event of entrapment, the task was successfuly executed and Matthew Cook, the SeaView Systems’ ROV operator, was relieved and very pleased when he sat the vehicle safely back on deck to perform post-dive checks.

The most important achievement of this project was the demonstration that a small vehicle fitted with a very dense suite of survey equipment and operated by a suitably qualified operational crew was capable of reaching the bulkhead door, and once there was able to perform work. The act of demonstrating the ability to work in the environment opened up a range of remediation options to Cameco, the mine operator.

SeaView Systems insulated control container/workshop provides a comfortable working environment in temperatures from -40°C to +40°C
