The SVS-904 2 Channel Isolated Video Switch can be used either to provide 3000 Vrms/1min isolation for two channels of video or two video inputs and one output controlled by a solid state relay on the board – perfect if you need an extra camera, but don’t have the telemetry available.

Specifications:

  • 5 VDC
  • 3000 Vrms isolation
  • Switch cameras using TTL, PLC or relay
A dimensions diagram for the SVS-904 Two Channel Isolated Video Switch is shown.

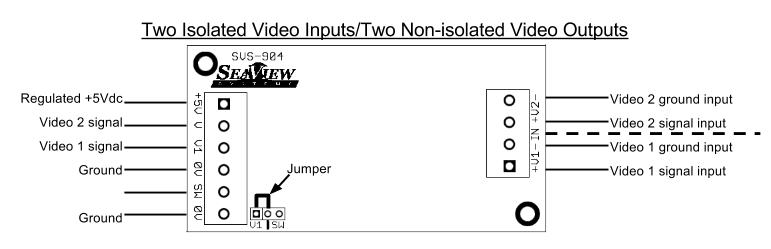

A diagram is shown for the SVS-904, showing Two Isolated Video Inputs and Two Non-isolated Video Outputs.
A diagram is shown for the SVS-904, showing Two Isolated Video Inputs and One Switched Video Output.

Contact SeaView Systems today for solutions to all your subsea video and data conversion needs.
